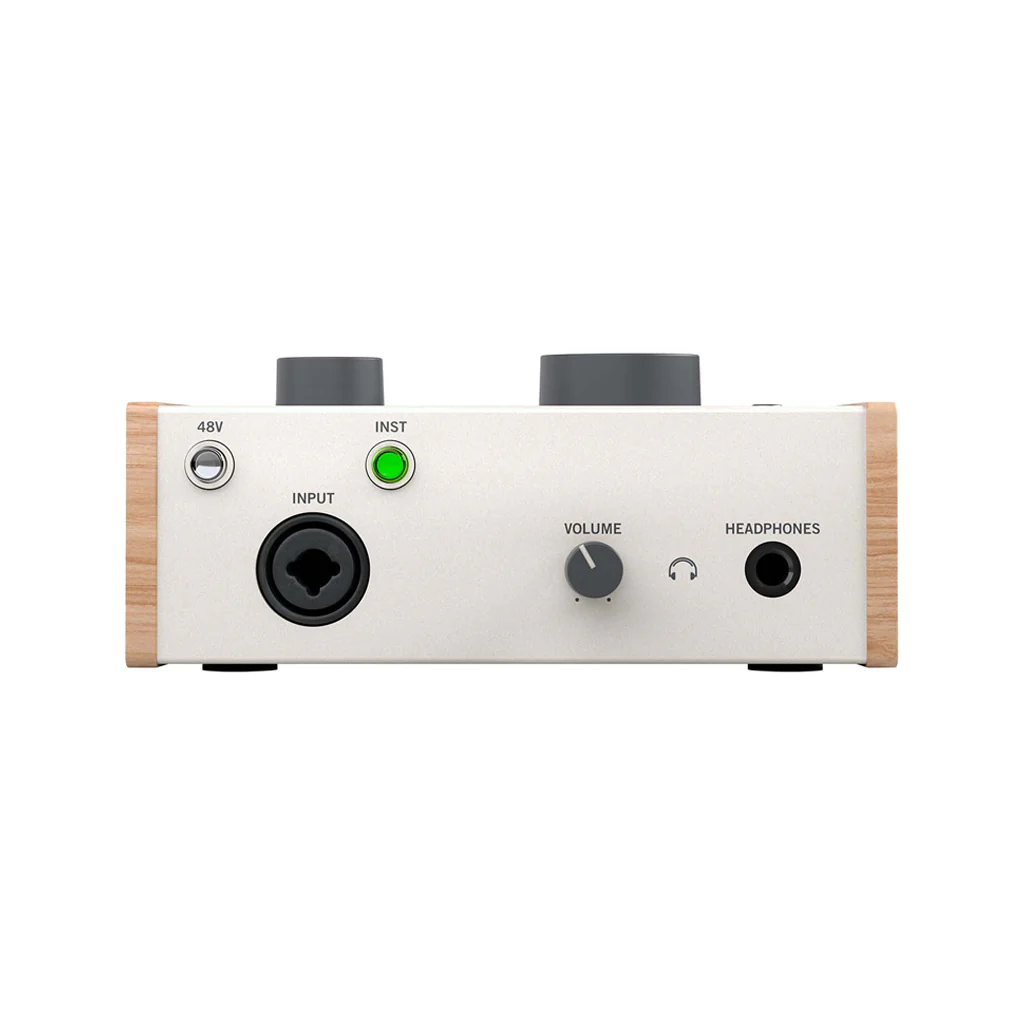

Universal Audio Volt 176 USB-C Audio Interface
Start recording right out of the box with a high-quality 1-in / 2-out USB audio interface, award-winning DAW, and a suite of UAD plug-ins and instruments including classic Teletronix LA‑2A compressors and Pultec EQs, plus new favourites like PolyMAX Synth, Century Tube Channel Strip, and Oxide Tape Recorder.
Built with timeless UA analogue sound, Volt 176 USB Recording Studio gives you the sound of your favourite records.
Features:
- Desktop 1-in / 2-out USB audio interface with 1 preamp and class-leading 24-bit / 192 kHz audio conversion
- Vintage Mic Preamp mode for recording your voice, guitar, or any instrument with the rich, full sound of an iconic UA tube preamp
- 76 Compressor adds clarity and punch to vocals, instruments, and other sources with an analogue circuit based on UA's renowned 1176
- Listen in realtime as you record with Direct Monitoring for latency-free recording
- Bus-powered and class-compliant for hassle-free set-up with Mac, PC, iPad, and iPhone using the included USB-C to USB-A cable
- Studio-quality headphone amplifier for loud, clear monitoring
- 48V phantom power for condenser microphones
- Stylish, rugged construction built to withstand years of use
- Connect MIDI controllers, synths, and drum machines through the onboard 1-in / 1-out MIDI connection
Specifications:
- Mic/Line/Inst Preamp Inputs: One Combo XLR/TRS, 20 Hz to 20 kHz, ±0.1 dB Frequency Response, +48V (switchable)
- Monitor Out: Two (one stereo pair) ¼” TRS balanced or TS unbalanced, 20 Hz to 20 kHz, ±0.1 dB Frequency Response
- Headphone Out: One ¼” TRS Stereo, 20 Hz to 20 kHz, ±0.1 dB Frequency Response
- USB: One USB 2.0 port (USB Type-C connector)
- MIDI: In, Out (two 5-pin DIN connectors)
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
- Bit Depth Per Sample: 24
- Vintage Mode: Selectable ON/OFF
- 76 Compressor Presets: Selectable VOC, GTR, FAST, OFF
- Power: Barrel, female, 5.5mm OD, 2.1mm ID, IEC 60130-10 Type A
- Dimensions: 5.9" x 5.1" x 2.6" / 15.0cm x 13.0cm x 6.5cm
- Weight: 0.65 kg (1.4 lbs)
