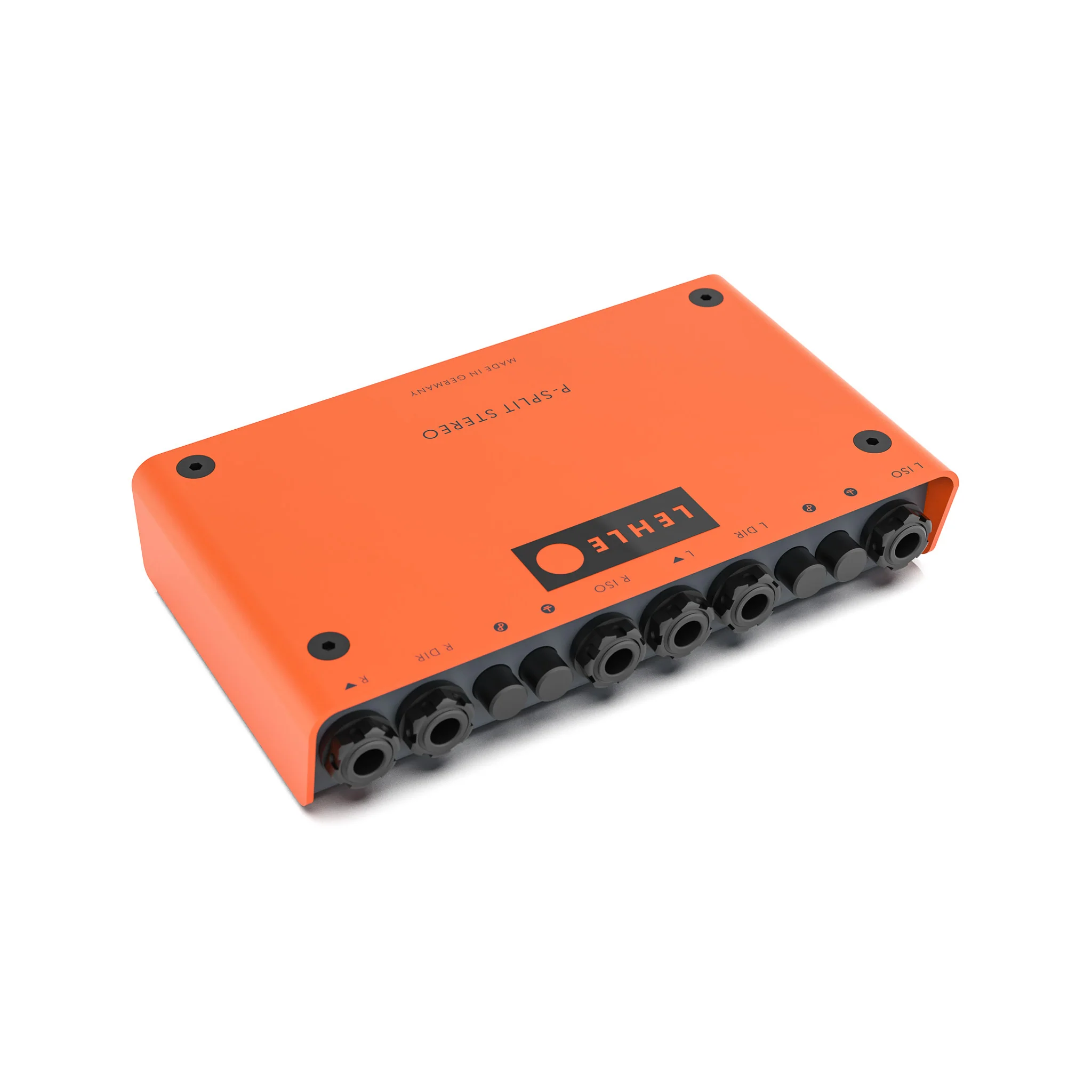

Lehle P-Split Stereo High Impedance Signal Splitter

The Lehle P-Split Stereo combines passive intelligent splitting with the highest possible signal fidelity in a double pack.

The classic solution for splitting, eliminating hum, balancing and reamplification in recording applications, now appears in a doubled version and this time adds the passive summing of signals.

The possibilities are reaching far.

Features:

• Stereo split, summing, double DI box and problem solver
• Hum-free and lossless splitting and isolating
• Two high-impedance LEHLE TRANSFORMER HZ
• Phase and ground switch per channel
• Suitable for unbalanced or balanced signals
• Passive – doesn’t need power

Specifications:

• Frequency Range: 20 Hz – 100 kHz -0.1/ +0.4 dB (source 600 Ω, load 1 MΩ)
• Total Harmonic Distortion: 0.003 % (0 dBu, 1 kHz)
• Input Impedance (Transformer Load Impedance): min. 2 MΩ at 2 kHz
• Max. Level: 7.7 V RMS / 20 dBu (THD < 1%, 50Hz - 20 kHz)
• Overall Height: 35 mm / 1.4"
• Width: 152 mm / 6"
• Length: 88 mm / 3.5"
• Weight: 614 g
