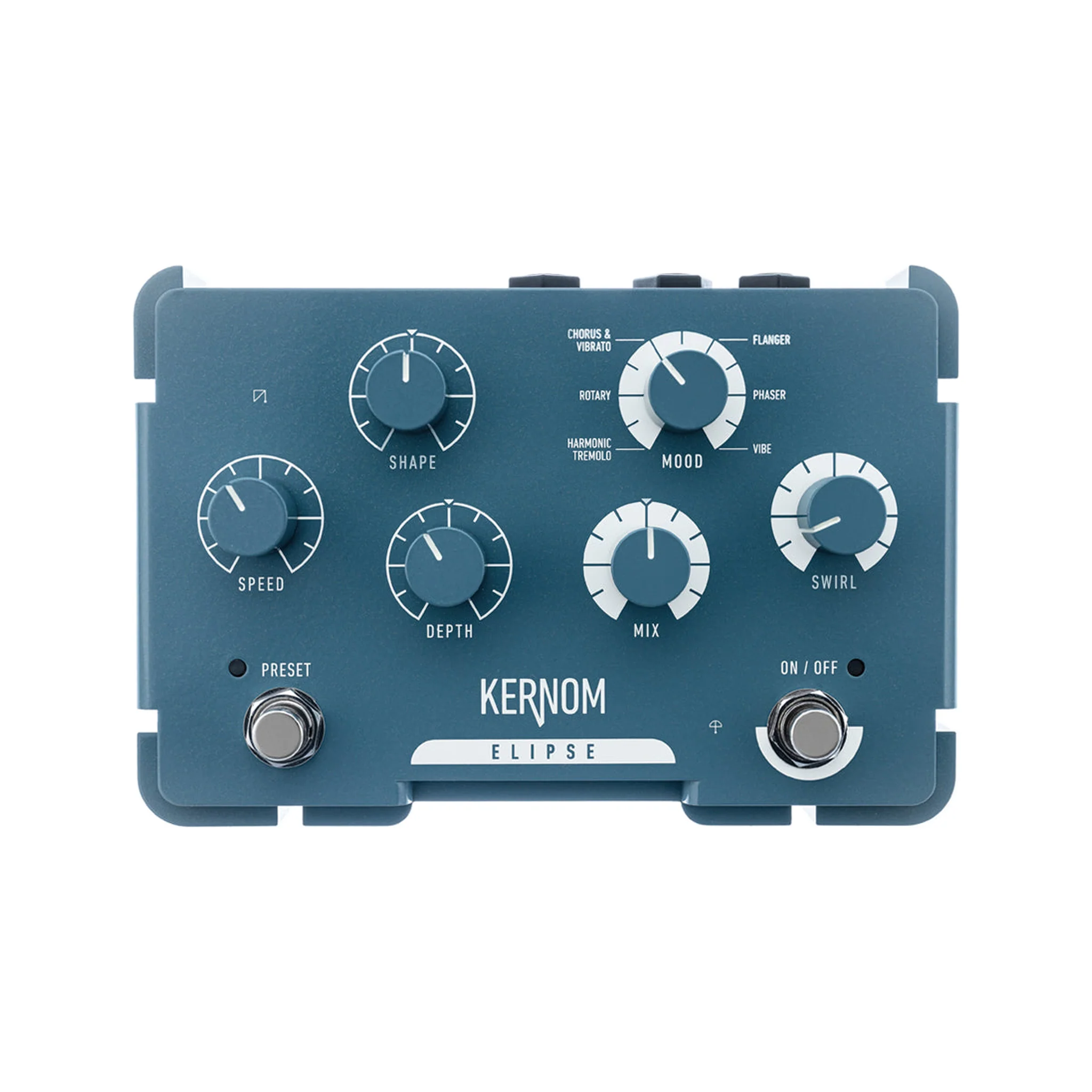

Kernom ELIPSE Modulation Analog Effects Guitar Pedal

Tired of switching between multiple modulation pedals? ELIPSE combines all your favourite modulation effects—tremolo, chorus, flanger, phaser, and rotary—into one seamless, expressive pedal.

Forget preset-based limitations—ELIPSE lets you morph continuously between effects, unlocking hybrid sounds you’ve never heard before.

Features:

• All Iconic Modulation Effects (Chorus, Flanger, Phaser, Tremolo, Univibe, Rotary Speaker & more)
• Morph seamlessly between effects with the MOOD knob
• SWIRL Control for secondary modulation layers for depth
• Expression Pedal Input for real-time control
• Premium input stage and ultra-low noise output
• True Bypass with relay switching
• MIDI In/Out
• 1 Internal favourite preset
• 127 MIDI presets
• 5mm thick touring-ready casing

Specifications:

• Input Impedance:  1Meg Ohm
• Output Impedance: 100 Ohm
• Bypass: True Bypass (electromechanical relay switching)
• AD/DA Conversions: 24 bits, 48 kHz
• Chassis: 5mm thick aluminium casing with summit white smooth and high-grade painting surface
• MIDI: Use a type A mini jack TRS MIDI cable
• Power: 9VDC centre negative
• Current Draw: 250mA minimum, 300mA or more recommended
• Dimensions:  11.2 cm deep x 16.4 cm wide x 5.2 cm tall (4.4 inches deep x 6.5 inches wide x 2 inches tall).
• Weight: 850 g (1.8 lbs)
