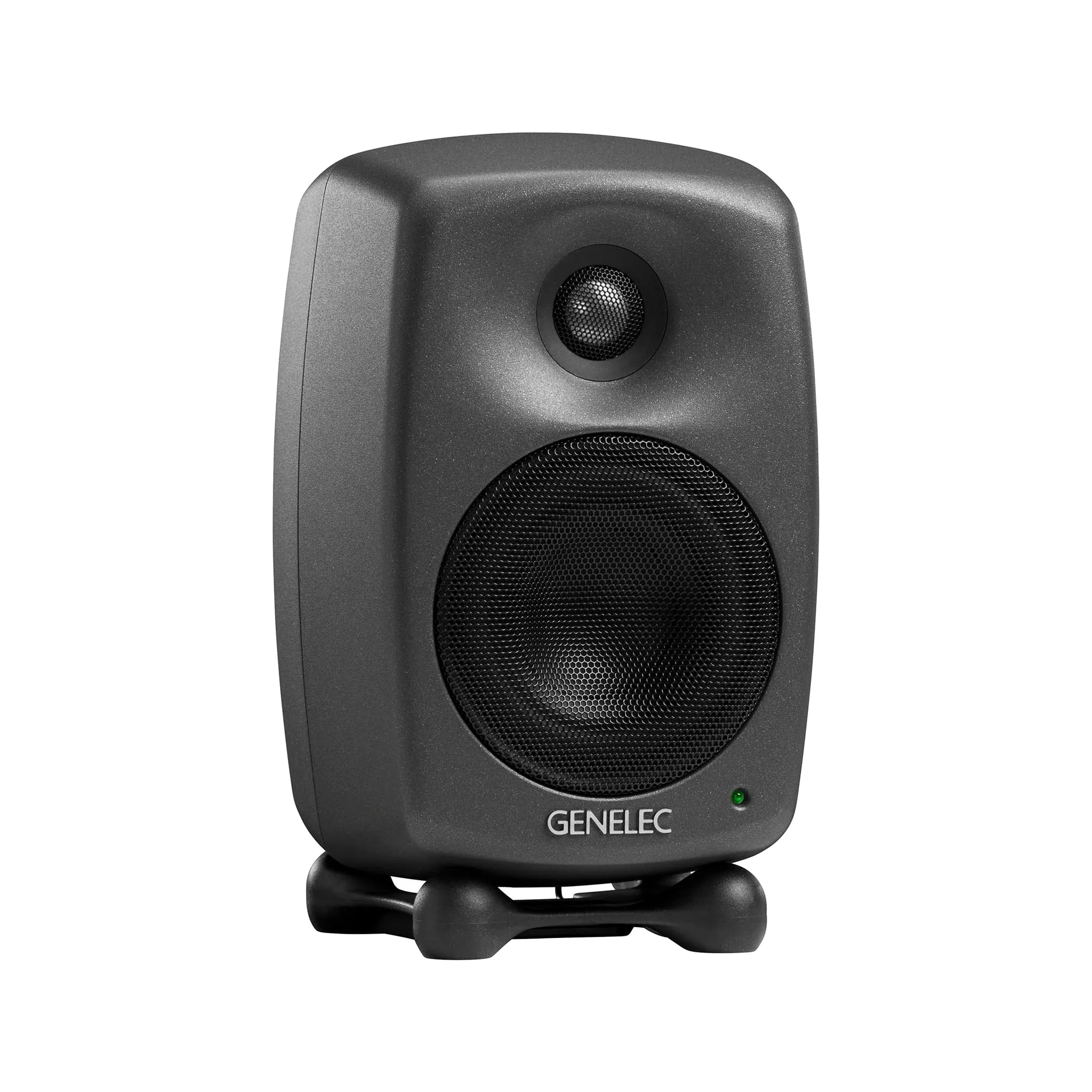

Genelec 8020D 4-Inch Powered Studio Monitor, Single, Dark Grey

The bi-amplified GENELEC 8020D is a compact two way active monitoring loudspeaker designed for near field

monitoring, mobile vans, broadcast and TV control rooms, surround sound systems, home studios, multimedia applications and also for use with computer soundcards. As an active loudspeaker, it contains drivers, power amplifiers, active crossover filters and protection circuitry.

The MDE™ (Minimum Diffraction Enclosure™) loudspeaker enclosure is made of die-cast aluminium and shaped to reduce edge diffraction. Combined with the advanced Directivity Control Waveguide™ (DCW™), this design provides excellent frequency balance in difficult acoustic environments. If necessary, the bass response of the 8020D can be extended with a Genelec subwoofer.

Features:

• Compact two-way active monitoring loudspeaker
• Drivers, power amplifiers, active crossover filters and protection circuitry
• MDE™ enclosure made of die-cast aluminium, reducing edge diffraction
• Advanced Directivity Control Waveguide™ (DCW™)
• Can be extended with a Genelec subwoofer (not included)

Specifications:

• Amplifier Power: 50 W Bass (Class D) + 50 W Treble (Class D)
• Lower cut-off frequency, –6 dB: < 56 Hz
• Upper cut-off frequency, –6 dB: > 25 kHz
• Frequency Response: 56 Hz - 25 kHz ("-6 dB")
• SPL: 100 dB
• Crossover: Bass/Treble 3000 Hz
• Drivers: 4 1/8" (105 mm) bass driver cone, 3/4" (19 mm) metal dome treble driver
• Enclosure: MDE™ (Minimum Diffraction Enclosure™) Die-cast aluminium, Reflex port
• Connections: 1 XLR female
• Includes: 1 8020D monitor, 1 mains cable 1.8 m, 1 operating manual, 1 IsoPod kit
• Dimensions: 148 mm (W) x 142 mm (D)x 242 mm (H) with Iso-Pod™
• Weight: 3.2 kg (7.1 lbs)
