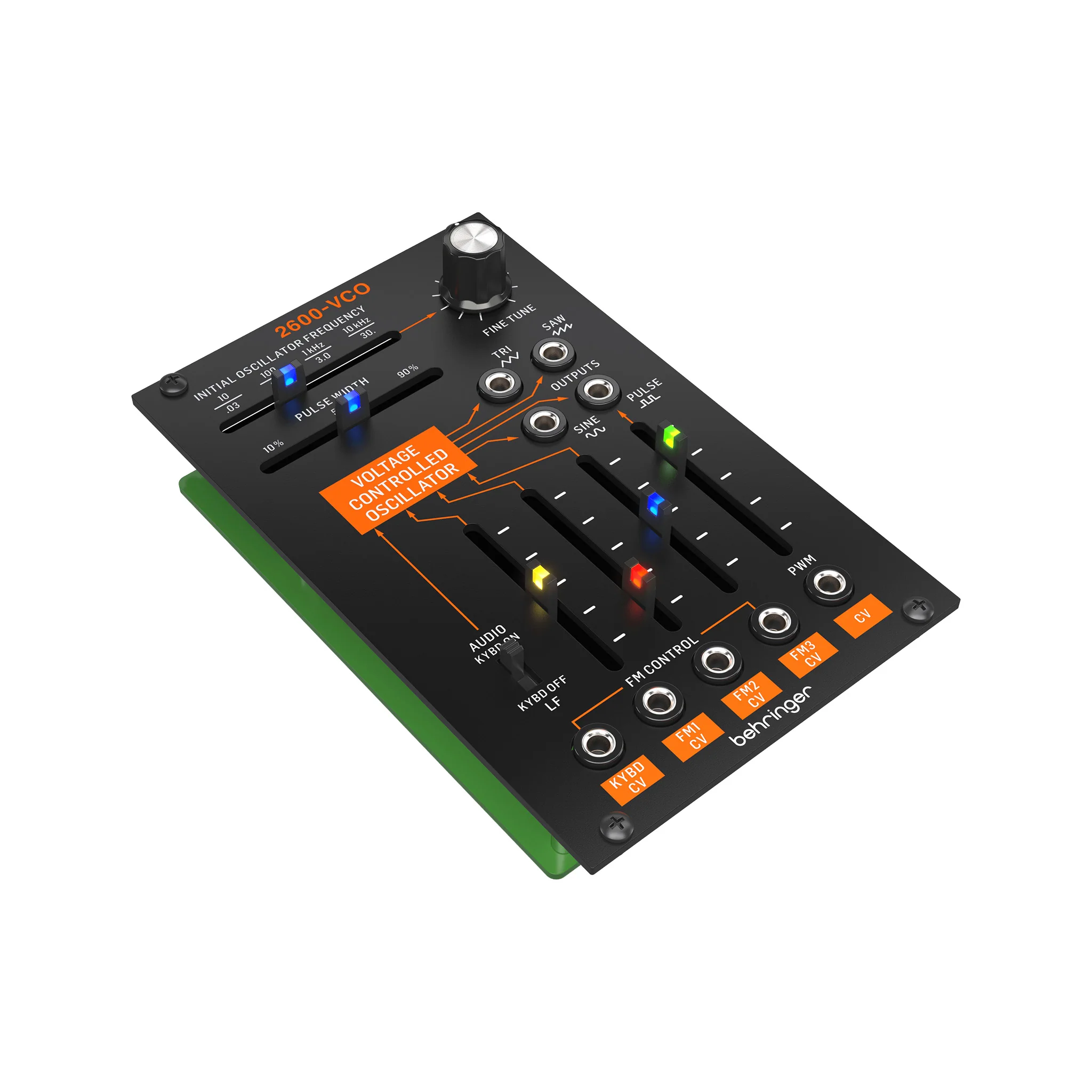

Behringer 2600-VCO Analog VCO Module For Eurorack

The original 2600 came out in the '70s and was a mainly all discrete transistor design with some op-amps. The discrete circuitry gave the 2600 a very distinctive sound and were used by artists like Jean Michel Jarre, Depeche Mode, Stevie Wonder and so many more. The 2600-VCO is a compact and versatile module, giving you a VCO featuring four simultaneous waveforms with the ability to control a wide frequency band for amazing flexibility. Modular synths were a landmark development in electronic music and today, it’s about to get better.

Features:

• Amazing sounding VCO module from the ’70s
• Authentic reproduction of original ARP 2600 circuitry
• VCO features 4 simultaneous waveforms: sine, triangle, saw and pulse
• VCO offers wide frequency control from 10 Hz to 10 kHz or 0.03 Hz to 30 Hz in LF mode
• PWM can be simultaneously controlled manually and via external CV input
• Switchable between LF (keyboard off) and Audio (keyboard on)
• Separate outputs for each waveform and 5 CV inputs for pitch control and PWM
• 8 controls and switches give you real-time access to all important parameters
• Eurorack specs: 16 HP, 140 mA +12 V, 5 mA -12 V

Specifications:

• Inputs: 1 x 3.5 mm TS jack (DC coupled), 3 x 3.5 mm TS jacks (DC coupled)
• PWM CV: 1 x 3.5 mm TS jack (DC coupled)
• Outputs: 4 x 3.5 mm TS jacks (DC coupled)
• Power Supply: Eurorack
• Current Draw: 140 mA (+12 V), 5 mA (-12 V)
• Dimensions: 5.08" (H) x 3.19" (W) x 1.65" (D) / 129mm (H) x 81mm (D) x 42mm (D)
• Weight: 0.15 kg (0.33 lbs)
